MMO Titanium is generally utilized as an Anode during electrochemical interaction. Titanium has curious properties. It is impervious to the section of current into an electrolyte, however it has low resistivity when a subsequent metal connects with it. In the event that an endeavor is made to involve titanium as an anode in salt water, this protection from the entry of momentum into the electrolyte promptly becomes obvious for a rising anodic ebb and flow is applied to it, the voltage expected to drive the ebb and flow through the surface film ascends until at the most vulnerable focuses the film separates and extraordinary nearby consumption follows.

Electrochemical interaction requires anodes. For the most part Iridium Based or Ruthenium based Titanium Anodes. MMO titanium anodes join the superb electrochemical attributes of MMO with the great consumption characteristics of titanium.

MMO titanium will be titanium that has been covered with an extremely slender layer of MMO, ordinarily by electro disintegration process. The motivation behind it is to give a leading medium that won't respond with electrolytes. Iridium is extremely idle and doesn't promptly respond electrochemically, so you can do some awesome electrochemistry with it. Titanium is utilized on account of its high conductivity and straightforwardness in plating under electro testimony process.

Tiaano, we manufacturing and supplying Titanium based anodes with MMO Coating or platinum plating for various electro plating applications. Especially for Gold, Rhodium, Tin, Nickel and Copper plating applications. For these application, the iridium based anode is the best choice.

Iridium is a precious metal having very good physical and chemical properties such as high corrosion resistance, thermal conductivity and catalytic nature. The iridium Coating delivers excellent performance and a long service life. The life time of Iridium titanium anodes is in particular dependent on the work medium (electrolyte) and the anodic current (specific current density).

Advantages of Titanium Based MMO Anodes:-

•          Excellent adherence properties with proper surface preparation

•          Titanium is readily available in commercially pure form

•          Lightweight and Outstanding mechanical strength

•          Outstanding chemical resistance to highly acidic conditions – typical for oxygen and chlorine evolving environments common in many cathodic protection applications.

Manufacturing Process of MMO Anode:-

Tiaano, we manufacturing and supplying Titanium based anodes with MMO Coating or platinum plating for various electro plating applications. Especially for Gold, Rhodium, Tin, Nickel and Copper plating applications. For these application, the iridium based anode is the best choice.

Iridium is a precious metal having very good physical and chemical properties such as high corrosion resistance, thermal conductivity and catalytic nature. The iridium Coating delivers excellent performance and a long service life. The life time of Iridium titanium anodes is in particular dependent on the work medium (electrolyte) and the anodic current (specific current density).

Advantages of Titanium Based MMO Anodes:-

•          Excellent adherence properties with proper surface preparation

•          Titanium is readily available in commercially pure form

•          Lightweight and Outstanding mechanical strength

•          Outstanding chemical resistance to highly acidic conditions – typical for oxygen and chlorine evolving environments common in many cathodic protection applications.

Manufacturing Process of MMO Anode:-

The typical manufacturing process for MMO anodes starts with surface preparation of the substrate by thoroughly cleaning the commercially pure titanium. This is followed by a chemical etching and in some cases mechanical abrasion of the surface. Once the substrate surface preparation is complete, the coating is applied as a mixture of metal salts and then thermally decomposed at temperatures ranging 400 to 600 °C. This forms an adherent layer of mixed metal oxides. The MMO coatings can be applied in many layers and heat treated after each coat to achieve the desired coating loading to meet the current capacity requirements for the application.

Tiaano, a complete design and manufacturing Continuous Type Electro Chlorinators, Batch Type Electro Chlorinators, Titanium Electrolyzers and Titanium Electrode assembly for water treatment application with different cell arrangement. There are Parallel Plate Electrode (PPE), Concentric Tube Electrode (CTE) and Parallel Plate and Mesh Electrodes (PPME).

Titanium is mostly used as a cathode during electrolysis process. Titanium has peculiar properties. It is resistant to the passage of current into an electrolyte, but it has low resistivity when a second metal makes contact with it. If an attempt is made to use titanium as an anode in salt water, this resistance to the passage of current into the electrolyte immediately becomes apparent for an increasing anodic current is applied to it, the voltage required to force the current through the surface film rises until at the weakest points the film breaks down and intense local corrosion ensues.

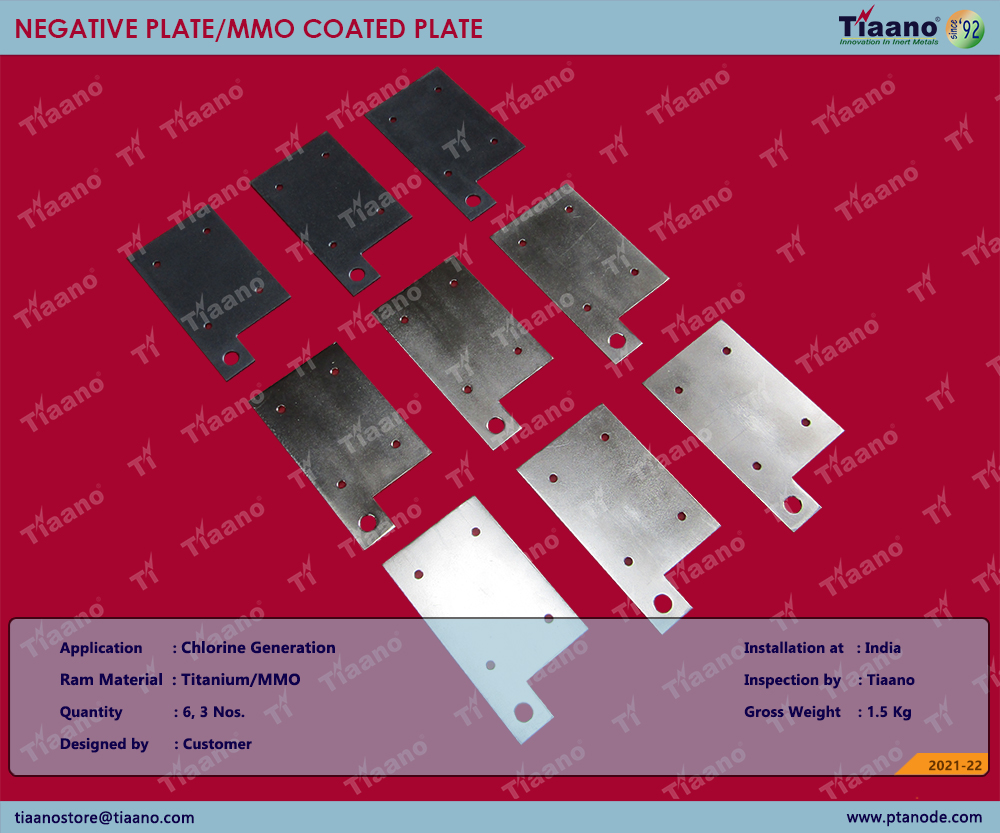

Project Details for MMO Coated Titanium Sheet Anode:-

Tiaano: Manufacturer, Fabricators, Supplier and Exporter

Anode: MMO Coated Titanium Anode

Application: Brine Chlorination, Electro Chlorination, Sodium Hypochlorire Production

Installation at: India

Inspection by: Tiaano

Reference Link: http://tiaano.com/tiaano_electrolysers.htm

http://tiaano.com/tiaano_seawater_chlorinators.htm

http://tiaano.com/tiaano_fresh_water_chlorinators.htm

Tiaano, a complete design and manufacturing the Mixed Metal Oxide (MMO) Coated Titanium Anodes and cathodes for the production of Sodium Hypochlorite Generator, On-Site Chlorine Generators, Chlorination Unit and Salt Chlorine

Advantages of MMO (Mixed Metal Oxides) Anodes: MMO anodes having longer life & stable operation, Lightweight and easy to handle, Very minimum maintenance cost, having good electrical conductance and meet a wide range of electrolysis needs. On-site generation is a proven, cost-effective, reliable and safe treatment and bulk sodium hypochlorite disinfection. The Solution destroys all classes of microorganism (Virus / Bacteria / Protozoa).

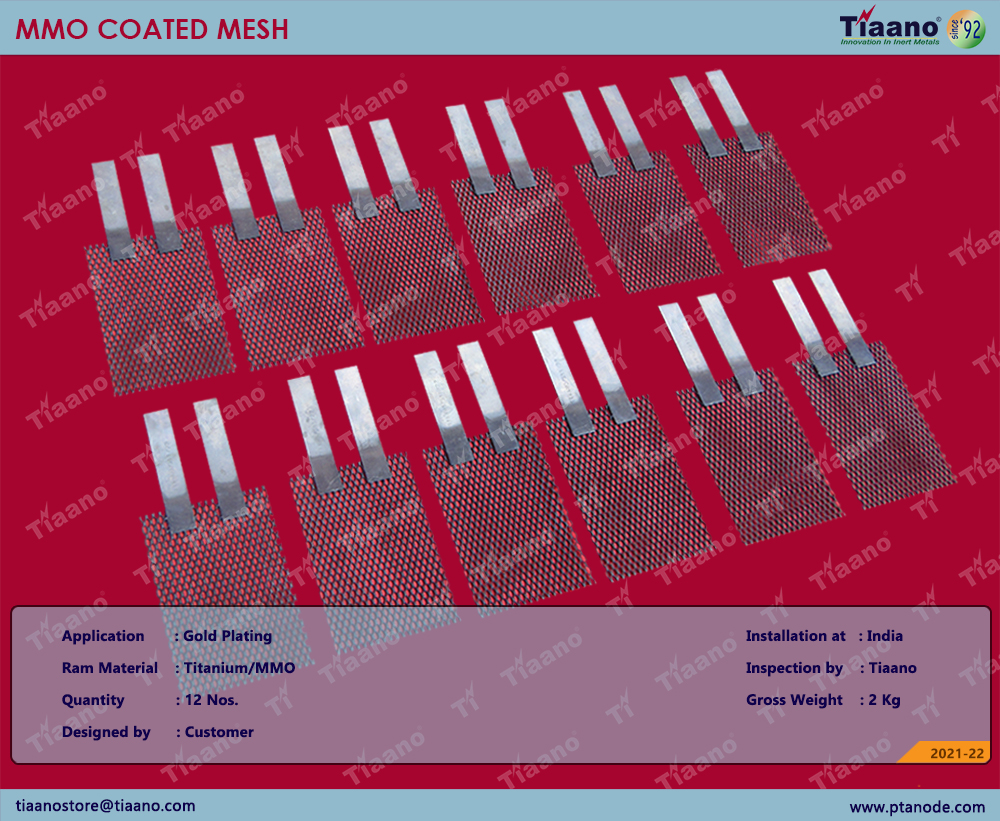

Project Details for MMO Coated Titanium Mesh Anode:-

Tiaano: Manufacturer, Fabricators, Supplier and Exporter

Anode: Platinized Plated Titanium Mesh Anode and MMO Coated Titanium Anode

Application: Brine Chlorination, Electro Chlorination

Installation at: India

Inspection by: Tiaano

Reference Link: http://tiaano.com/tiaano_electrolysers.htm

http://tiaano.com/tiaano_seawater_chlorinators.htm

http://tiaano.com/tiaano_fresh_water_chlorinators.htm

Tiaano, a complete design and manufacturing Continuous Type Electro Chlorinators, Batch Type Electro Chlorinators, Titanium Electrolyzers and Titanium Electrode assembly for water treatment application with different cell arrangement. There are Parallel Plate Electrode (PPE), Concentric Tube Electrode (CTE) and Parallel Plate and Mesh Electrodes (PPME).

Batch type Electrochlorinator produces required chlorine in the form of Sodium Hypochlorite in 8 hours from common salt as per your requirement of customer and Standards.  It is safe and cost saving. Compact Electrochlorinator or Batch type disinfectant generator consists, Reaction tank, Hypo Tank, Power supply unit and Dosing pump are all integrated into one single unit. They are prewired and piped, so they can be installed any were without any civil foundation or support stands. We (Tiaano) are suppling Electrolyzers / electrode assembly / Anode and Cathodes also for making Electro chlorination unit for ECU manufacture.

Titanium is mostly used as a cathode during electrolysis process. Titanium has peculiar properties. It is resistant to the passage of current into an electrolyte, but it has low resistivity when a second metal makes contact with it. If an attempt is made to use titanium as an anode in salt water, this resistance to the passage of current into the electrolyte immediately becomes apparent for an increasing anodic current is applied to it, the voltage required to force the current through the surface film rises until at the weakest points the film breaks down and intense local corrosion ensues.

MMO Titanium is mostly used as anAnode during electrochemical process. Titanium has peculiar properties. It is resistant to the passage of current into an electrolyte, but it has low resistivity when a second metal makes contact with it. If an attempt is made to use titanium as an anode in salt water, this resistance to the passage of current into the electrolyte immediately becomes apparent for an increasing anodic current is applied to it, the voltage required to force the current through the surface film rises until at the weakest points the film breaks down and intense local corrosion ensues.

Electrochemical process requires anodes. Mainly Iridium Based or Ruthenium based Titanium Anodes. MMO titanium anodes combine the excellent electrochemical characteristics of MMO with the good corrosion qualities of titanium.

MMO titanium is titanium that has been coated with a very thin layer of MMO, normally by electro decomposition process. The purpose of it is to provide a conducting medium that will not react with electrolytes. Iridium is very inert and doesn't readily react electrochemically, so you can do some very good electrochemistry with it. Titanium is used because of its high conductivity and ease in plating under electro deposition process.

Tiaano Iridium Based MMO coated anodes are designed for use in electro plating baths for Rhodium Plating and or acid-based Gold solutions. The MMO Titanium mesh anodes comes with a stem are suspended in plating baths with the mesh portion immersed in the electroplating solution.

Field of Electro plating Applications:-

Gold plating, Decorative chrome plating, PCB industry, Silver plating, copper plating, instrumentation, platinum plating, electrowinning, rhodium plating, chromium plating, sensing elements, Precious and non- precious metal electroplating, Electronics and semiconductor industry and hard chrome plating.

Advantages of MMO Coated (Iridium Based) Titanium Mesh Anode:-

MMO Coated Titanium Mesh Anode are having longer life & stable operation

Mixed Metal Titanium Mesh Anode are lightweight and easy to handle

MMO Titanium Sheet Electrode needs very minimum maintenance cost

MMO Based Titanium Mesh Electrode are having good electrical conductance

MMO Titanium Sheet anodes meet a wide range of electrolysis needs

Mixed Meal Oxide titanium Mesh anodes required minimum installation time and cost

Tiaano, a complete design and manufacturing the Mixed Metal Oxide (MMO) Coated Titanium Anodes and cathodes for the production of Sodium Hypochlorite Generator, On-Site Chlorine Generators, Chlorination Unit and Salt Chlorine

Advantages of MMO (Mixed Metal Oxides) Anodes: MMO anodes having longer life & stable operation, Lightweight and easy to handle, Very minimum maintenance cost, having good electrical conductance and meet a wide range of electrolysis needs. On-site generation is a proven, cost-effective, reliable and safe treatment and bulk sodium hypochlorite disinfection. The Solution destroys all classes of microorganism (Virus / Bacteria / Protozoa).

MMO Coated Titanium Anode for Chlorination System:-

MMO Coated Titanium Anode for Seawater and Salt Water Chlorination System On-Site Chlorine Generator, Chlorination Device, Swimming Pool Salt Chlorine Generator. Electrolytic seawater Sodium Hypochlorite Generator using natural seawater, equipped with high speed and on-site produce Sodium Hypochlorite Solution.

Brine Electrochlorinator using three common consumables: salt, water and electricity.  On-site generation is a proven, cost-effective, reliable and safe treatment and bulk sodium hypochlorite disinfection.

Tiaano, a complete design and manufacturing the Iridium Based MMO Coated Titanium anodes and Iridium Based MMO Coated for Water Ionization and water treatment industrial applications. Iridium Based Titanium Anodes and Mixed Metal Oxide Anodes are found in industrial applications, such as, hypochlorite generation in waste water, in refineries, petrochemical plants and power plants, for potable water supplies and in food processing.

Marine applications include the above as well as use in off shore platforms and the prevention of mussel, barnacle and algal growth on ships hulls. This anodes specially designed for Water Ionizations / Ionizer. Tiaano manufacturing different dimensions and Shapes of MMO electrode for water ionizers. The ionizer uses grade one titanium Anodes and Cathodes to be coated with a good electrical conductor with longevity built to last 10 years that will also not dissolve during electrolysis. Stainless steel was used for Water Ionizer electrodes in the late 1980's and was found not be a suitable material because they did not last more than a few years. The industry began using titanium Anode in the early 1990's because of its design life.

Iridium Based Titanium Anode (MMO Anode) are produced by coating Mixed Metal Oxide. On a specially treated precious metal substrate by means of thermal decomposition process. They are economical as well as it retains the superior physical and chemical properties of Iridium. It is the most effective metal for any electrolysis process due to its current conducting property.

Uses of electrolysis:-

Electrolysis is used in the extraction of metals from their ores. For example, when a current is passed through molten sodium chloride, sodium is deposited at the cathode and chlorine gas is evolved at the anode. Aluminium and potassium are also extracted by electrolysis.

 It is used for refining certain metals such as copper and zinc.

Electrolysis is used for the manufacture of chlorine. In submarines, oxygen produced by the electrolysis of water is used for breathing.

Electrolysis is used for electroplating many things we use every day.

Important parameters determining the anode design are:-

The electrochemical cell or installation wherein the anodes are used

The process conditions, such as electrolyte composition, temperature, current density, design life, etc.

Mechanical load of the anode

Capacity of electrical conductivity of the base material.

Because of a very flexible production facility, we are able to manufacture anodes of all types. Sheet, plate, mesh, wire, rod, tubular or combinations and/or assemblies of these materials. Their size and number vary from several cm2 to 2 m2 and quantity 1 to 10,000 numbers. All anodes are produced according to customer specifications.

Anode Types:-

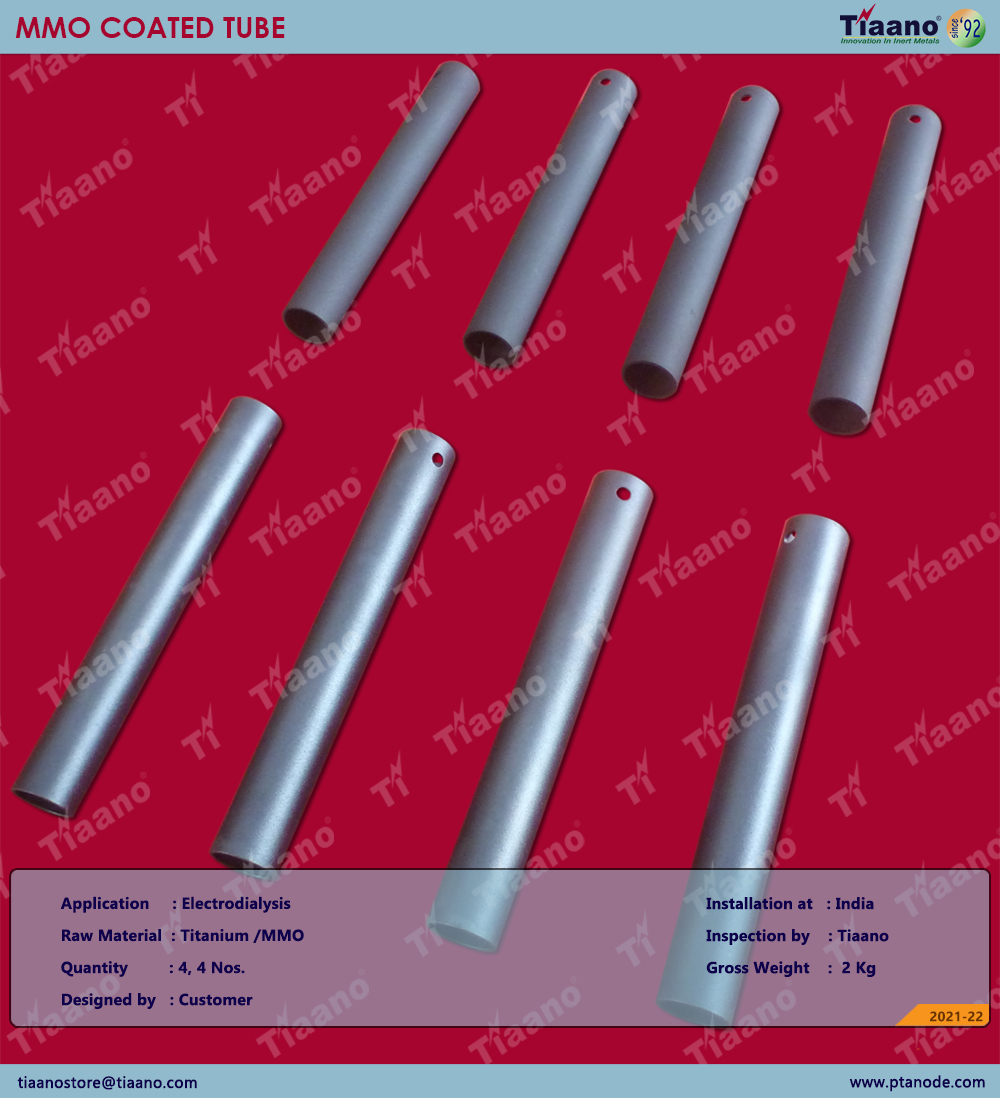

Tubular anodes, Box anode, Rod anode, Wire anode, Ring anode, Plate anode, Ribbon anodes, Strip anodes, Mesh anodes, and any other geometry.

•          Product: Titanium with Iridium Anode / Electrode

•          Use: Noble metal plating (silver, gold) Sea water antifouling, Electro Chemical Process

 •         Coating: Mixed Metal Oxide Coated / Activated / Deposited
